LED Tube Light

LED Tube Light
Product name:LED Tube Light
Item:T8-150-18(18W)
Details:
Parameter


Absolute Maximum Rating at TA=25

Parameter
Symbol

Absolute Maximum RatingT8-N8W-60/90/120/150

Unit

Working Voltage

V
AC85-265V
V

Power Dissipation

PD

8 / 10 / 12 / 16 / 18 / 20 / 22

W

Electrostatic discharge

ESD
800
V

Operating Temperature

Topr
-20∽+50

Storage Temperature

Tstg
-30∽+60

Electrical / Optical Characteristics at TA=25

Length

Part No.

Color

Color Temp.

Lumen
Power
CRI(Typical)

Viewing Angle

60cm
T01/T8-N8W-60

Cool white

5000-6000K

840 lm

8W
78
120°
T01/T8-N8WW-60

Warm white

3000-3500K

680 lm

8W
75
120°
T02/T8-N8W-60

Cool white

5000-6000K

1055 lm

10W
78
120°
T02/T8-N8WW-60

Warm white

3000-3500K

898 lm

10W
75
120°
90cm
T03/T8-N8W-90

Cool white

5000-6000K

1225 lm

12W
78
120°
T03/T8-N8WW-90

Warm white

3000-3500K

1032 lm

12W
75
120°
T04/T8-N8W-120

Cool white

5000-6000K

1680 lm

16W
78
120°
T04/T8-N8WW-120

Warm white

3000-3500K

1450 lm

16W
75
120°
T05/T8-N8W-120

Cool white

5000-6000K

2100 lm

20W
78
120°
T05/T8-N8WW-120

Warm white

3000-3500K

1800 lm

20W
75
120°
150cm
T06/T8-N8W-150

Cool white

5000-6000K

1875 lm

18W
78
120°
T06/T8-N8WW-150

Warm white

3000-3500K

1750 lm

18W
75
120°
T07/T8-N8W-150

Cool white

5000-6000K

2350 lm

22W
78
120°
T07/T8-N8WW-150

Warm white

3000-3500K

1900 lm

22W
75
120°

Notes:Tolerance of measurement of luminous intensity±15%.




Features

Special design of end-cap

Design of removable end-cap provides quick replacement of inner-transformer by pressing the switch on the end caps easily. Perfect design to avoid led failure in series. New technology to make all leds in the tube work independently.



Top quality PC cover

Both transparent and milky covers are available. For milky cover, LEDS are invisible, same as traditional fluorescent light.



Great Lighting source

High quality Epistar chip with bigger size(10*23μ), which is at least 6.5lm-7lm.



Low light attenuation

New technology is adopted for white light which the light attenuation is less than 3% in 1000h, however, the traditional attenuation of white color at least 30%;



Ultra quality inner transformer

Self-researched inner driver are used with isolate high. PF. and UL approved.



More durable & robust

It can light up to 10 years, comes with 3 years guarantee time.



Tube package

High quality cylindrical package and pin protection avoids shipping damage.



No need to remove ballast and starter

For a long time, there is a technique challenge to achieve LED Tube replace traditional fluorescent light tube directly. We invest a lot in this, and finally a new version tube birthed, our tube can achieve directly replacement, no need make any modification.

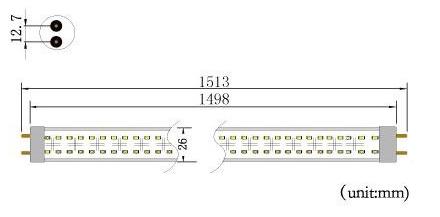

Diagram
